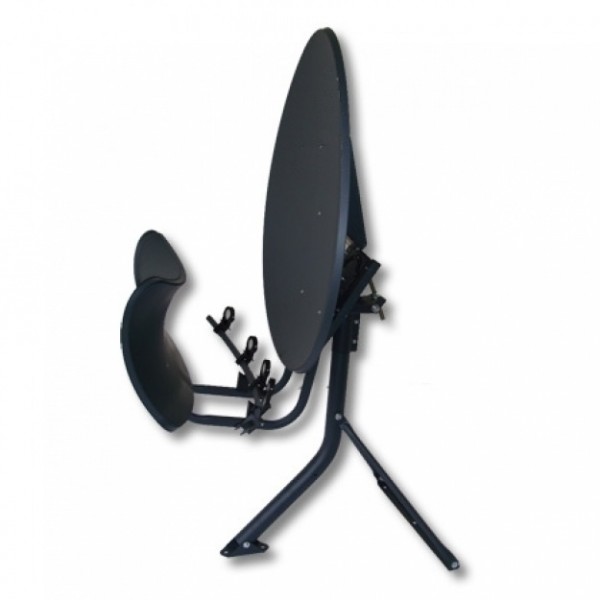

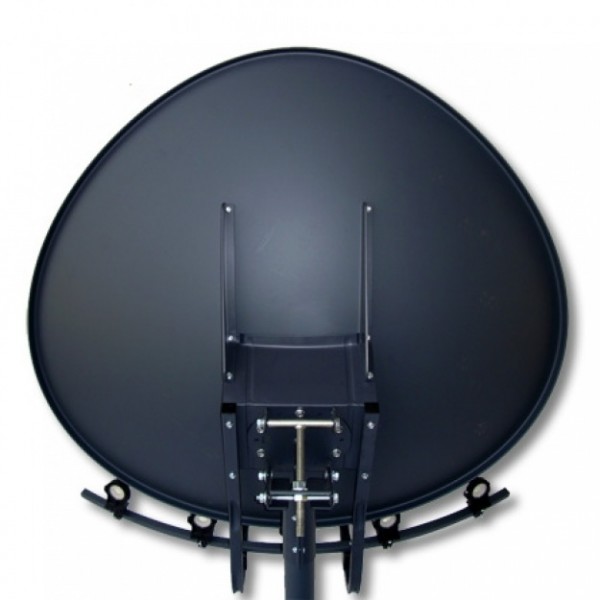

Wave Frontier / Maximum T90 Multi Feed Toroidal Satellite Dish Including Mount

Superb 90cm gregorian style dish, can hold up to sixteen LNB's on one crossarm.

The T90 dish allows you to mount up to sixteen LNB's and up to 60 degrees apart. Test results from this dish have been amazing. No more waiting for your dish to move. You can now have instant switching between all selected satellites.

Supplied with five adjustable LNB holders as standard

Comes with Ground/Wall Mount

Colour - Glossy Charcoal Grey.

T90 has the same effectiveness of 90 cm (38 inches) dish for each LNB installed

.

• Linear & circular polarization
• Easy assembly
• Galvanised steel
• Reliable in all weather conditions
• Capture up to 16 difference satellites
• Polyester powder coating

• Main Reflector, height/width: 96.7/108.6cm
• Sub-reflector, height/width: 36.1/83.6cm
• Reception frequency: 10.7 ~ 12.72 GHz
• Antenna gain: 40.1dB (0 degree Azimuth)
• Antenna gain: 39.2dB (20 degree Azimuth)
• Azimuth (at Tilt 0 degree): +/- 25 (total 60 degree)
• LNB installation: 1 - 10
• Efficiency: 65 ~ 80%
• Damage winds/Operating winds: 50 m/s (max 60 m/s)
• Colour: Dark grey
• Operating temp: -30/+60 degree C
• Relative humidity: 0-90%
